Product Code : NA2MP-500x500
Product Description

Owing to the company's position in the market as one of the top most traders, we provide the 3 pole XLR plug. The product is versatile, pre-wired and ready to use. The 3 pole XLR plug has adapters to reliably interlock various connector systems. We deal in products that are designed by highly skilled professionals and with the finest quality of products. Compact space, based on the X Series accepted worldwide. It is tested against all quality standards.

  • Rugged die-cast shell
  • Durable
  • Quality approved
  • Low maintenance

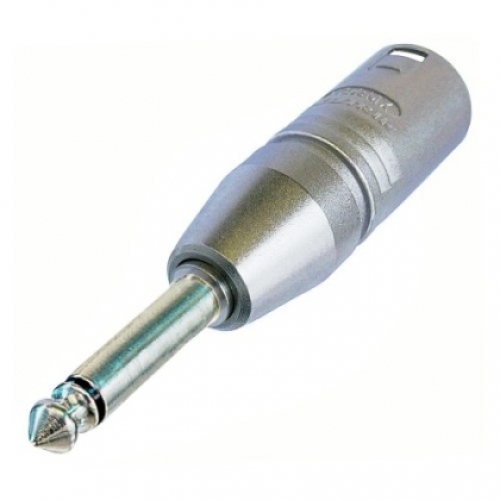

3 pole XLR male Mono 1/4" plug (tip, sleeve contact)

Wired according to IEC 268-12:
Pin 2: signal
Pin 1 and 3: connected to ground




Features & Benefits

  • Versatile, pre-wired and ready to use adapters to reliably interlock various connector systems
  • Professional look and compact space saving design, based on the X Series (XLR worldwide accepted standard)
  • Rugged diecast shell for best reliability.

    Technical Information hide

    Product
    Title
    NA2MP

    Connection Type
    Adapter

    Electrical
    Contact resistance
    ≤ 3 mΩ (inner) (XLR)

    Comment
    ≤ 6

    Dielectric strength
    1.5 kV dc / > 1 kVdc (XLR/Plug)

    Insulation resistance
    > 2 GΩ

    Mechanical
    Wiring
    according to IEC 268-12 pin 2 = signal, pin 1 and 3 connected to ground

    Locking device
    Latch lock

    Material
    Contact plating
    2 µm Ag over 2 µm Ni

    Contacts
    Brass (CuZn39Pb3) (plug)

    Insert
    Polyamide (PA 6.6 30 % GR)

    Shell
    Zinc diecast (ZnAl4Cu1)

    Shell plating
    gal Cu/Ni

    Environmental
    Temperature range
    -20 °C to +65 °C
